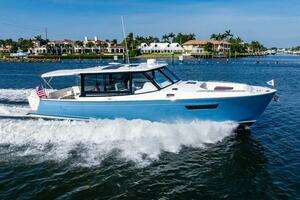

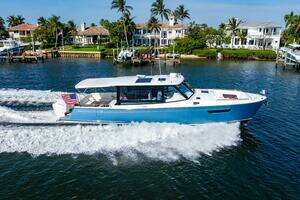

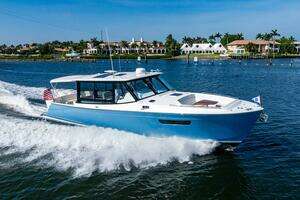

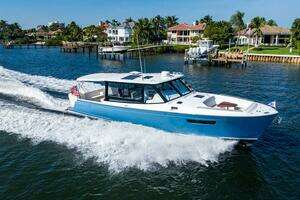

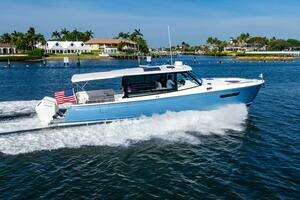

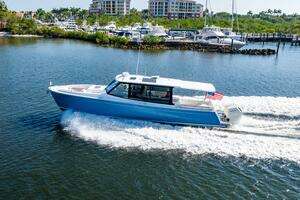

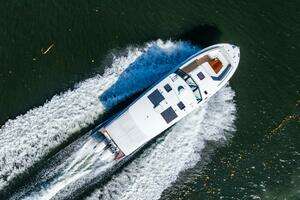

2024 MJM 4

The MJM 4 is an impressive day yacht featuring 4 social zones and a galley-up layout. Below deck features a large v-berth as well as a double berth amidships. With the protection of an indoor/outdoor pilothouse, innovative spacious layout, and exceptional stability, she is all about style, comfort and fun.

Optional Features:

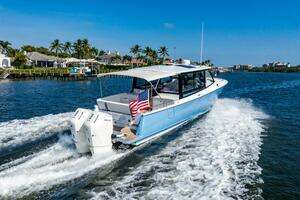

-Twin Mercury 600 HP V-12 Verado Outboards

-Sunbrella Roll-up Privacy Curtains on Bridge

-Aft Cockpit Cover

-Aft Cockpit Bimini

-Fixed bow Table

-Gyro Stabilizer

-Bow Thruster

-7.5 KW Genset

-36,000 BTU Marine Air 2 Zone HVAC

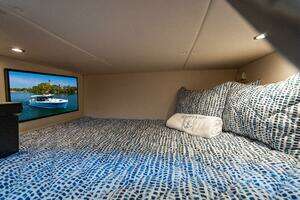

-32" LED Smart HDTVV in after berth

-32" LED Smart Tv in cabin

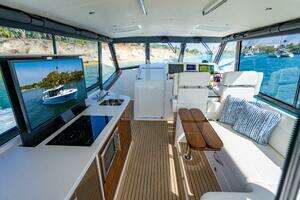

-43" drop-down LED Smart Tv in Pilothouse

-120V Electric Grill on Serving Bar

-Engine, Fresh water flushing system

-Underwater Lights ( 2 on transom)

-Garmin GMR Fantom 18 Radar

-12v Fans- master berth (2 midship cabin, 2 lounge)

-Commissioning Kit- Spares, Tools, Docking, etc

- Starlink

-Electrosea

-Bow seat covers

-rear seat covers

-Full bow cover

-Additional interchangeable tables for Aft Deck and Pilothouse

- Elite Marine Protection Warranty till May 2027 includes 2 more engine services

Hull

• Modified deep-V hull with sharp entry, 3.5:1 Length to Beam Ratio, dual lifting strakes, chine flats and 19-degree deadrise
• Engineered to ISO (CE Mark) Category B (OB) Ocean
• Hull topsides in acrylic urethane yacht paint, color of choice w/2 coats of clear
• Infused, vacuum bagged and post cured, epoxy composite with stitched biaxial E-glass and closed-cell foam core
• Solid keel, stem, and transom corners of E-glass/epoxy GRP
• High density core or solid FRP at thru-hull and hardware attachments points
• Side & transom entry doors onto cockpit sole (2)
• Bilges painted with smooth, gloss-white epoxy paint
• PVC guardrail and 1/2 round SS rub rail

Deck

• Infused, vacuum bagged and post cured, epoxy composite with stitched biaxial E-glass and closed-cell foam core
• Insignia white gelcoat deck w/ sand-textured non-skid

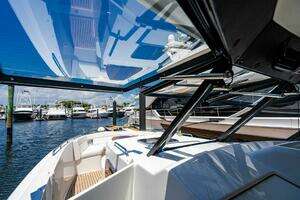

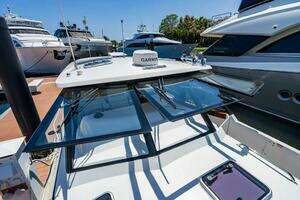

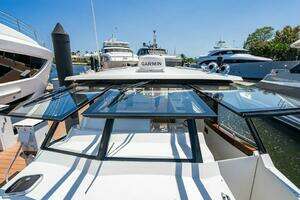

• Power Opening Forward Windshields
• Retractable swim ladder
• G-10 backing plates for deck hardware
• 316L SS handrails on corner posts, hardtop, bridgedeck, seatbacks, console and companionway entrance
• Cockpit guardrail, bow rail and bridge handrail of 1.25” 316L stainless and burgee staff for 16” hoist
• 3’x5’ National flag with teak staff and retainer pin
• Lewmar anchor windlass with deck and helm controls
• Auto-launching polished SS Ultra Anchor w/ rode of 250' - line and 25' SS High Tensile Chain
• Freshwater anchor and rode washer control at helm
• Polished stainless steel anchor guard

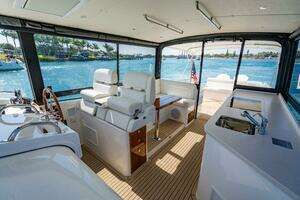

• "Downeast Style " integrated pilothouse with sliding safety glass. Aft enclosed with roll-up curtain and electrically operated forward opening windows
• Side deck drains divert dirt and dew overboard
• Storage lockers, 3 in bow seats, 1 in pilothouse settee, 1 aft cockpit
• Clear Awlwood finished teak storage drawers w/locks
• Machinery space access hatches (2) with scuppers, overboard drains, gaskets and lockdowns. Main hatch has electric operated lift. Access ladder on OB
• Dual position 36x16 single-leaf teak table opens to 32” wide

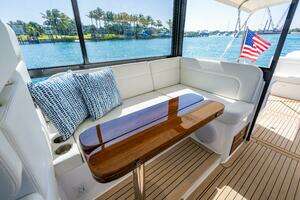

• Pilothouse settees and cockpit seating w/Spradling covered open- cell foam cushions that convert to 78 inch berths
• Drink holders strategically located around bow and throughout
• Panoramic cabin window (port)
• Companionway with safety catch and lock
• Panoramic hull window (stbd)
• Razeto & Cazareto silhouette polished mirror cleats
• Electrically retractable cockpit awning (SureShade)
• Full set of Stamoid covers: side windows, windshield, and bow seats
• Third removable teak cockpit table with stainless base
• Raised foredeck sunpad with fitted protective cover
• Custom cockpit upholstery covers

Electrical

• 12V DC system with breaker switches and digital OLED voltmeter
• 120VAC shore power system with 50 foot, 50 amp cord and Glendinning power cord retractor
• Batteries: (3) Victron 220Ah AGM house batteries (660Ah total) with dedicated Group 27 start battery for each engine
• 115A Alternators with OB OR 125A Alternators with IB
• Blue Seas automatic charging relays
• Combination Victron Charger/Inverter with 5000w inverter capacity,
• 200A charger, and automatic transfer switch
• All domestic and machinery space lighting is LED
• LED courtesy lights in cockpit and head
• LED navigation and anchoring lights
• Dimmable, LED rope lighting in galley
• 12V, 120V, & USB A/C charging ports throughout
• Bonded electrical system with Galvanic Isolator
• Serviceable wiring, bundled & numbered with Deutsch O-ring waterproof connectors
• Designed and wired to ABYC standards
• High-performance Starlink system with flat dish and onboard router
• ElectroSea CLEARLINE anti-fouling system for raw water lines
• Dual LED underwater lights at transom

Head

• Stbd side head, separate shower stall
• Corian counter with white Corian sink with faucet
• Paneled cherry storage locker outboard with sliding doors and towel storage shelf above
• Full-length mirror inside door
• Locker under sink w/stainless toilet paper holder T owel rings and hooks
• Overhead vent hatch with screen/shade
• Wall mounted shower hose w/turnoff
• Towel rings and hooks
• Tecma Toilet with 39 gallon holding tank and high level warning indicator

Plumbing

• Pressure hot/cold water with Johnson Aqua Jet Duo variable- speed water pressure pump
• 13 gallon Isotherm water heater (with shorepower or genset)
• 90 (2x45) gallon fresh water tank capacity
• Seagull IV drinking water purification filter system
• Hot/cold shower on swim platform
• High-pressure fresh water (washdown in port cockpit locker w/50’ hose & nozzle)
• 2000 GPH bilge pumps with high water alarm
• Electric, fresh water toilet system with 39 gallon holding tank w/ pump
• out and macerator discharge
• Gray water sump w/inspection for shower, head, and AC condensate
• Marelon seacocks with oversized strainers and double-clamped hose
• Dockside freshwater inlet with regulator

Navigation & Mechanical Systems

• Side-Power electric bow thruster
• Joystick docking with GPS station hold (OB) featuring SkyHook
• Garmin Fantom 24" dome radar integrated with chartplotter
• Garmin VHF 215 radio with built-in AIS receiver

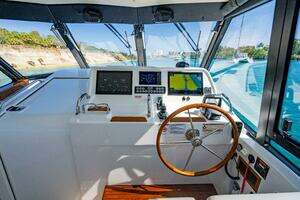

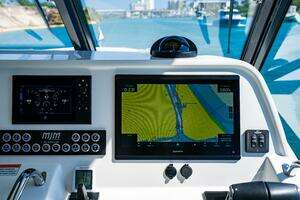

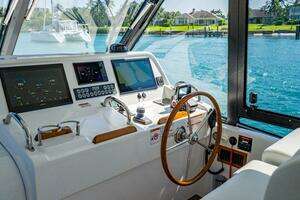

• Twin Garmin 8622 22” touchscreen multifunction displays
• Garmin AIS 800 active transceiver

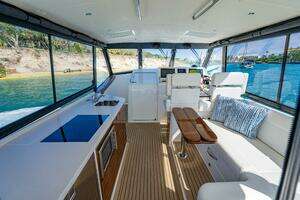

Galley

• Corian countertops
• Cherry cabinetry with soft-close doors, drawer slides, push-button locks and drawer handles
• Recessed Corian sink with TBD pullout faucet
• Flatware & utensil drawers (3) w/organizer tray
• Stainless 5.5 cu. ft. 2-drawer refrigerator
• Indel B153 Freezer compartment w/2 ice trays
• Under counter storage locker for large pots/pans and cleaning supplies
• Flip lid access panel to large Rubbermaid trash bin
• Overhead safety handrail and towel drying bar
• Summit 2-burner induction cooktop
• Microwave/Convection Oven combo

Main Cabin

• Large fixed hull ports (2), skylight hatches (2) and cabin portlights (2) to maximize ventilation, space and light
• Companionway is designed for safety with stainless grab rails and only 2 steps w/shoe locker & tool storage under
• Headroom of 6’4” on centerline
• High-gloss finished teak & wenge cabin sole with storage compartment
• Hand selected American cherry paneling and trim
• Foam backed Headliner

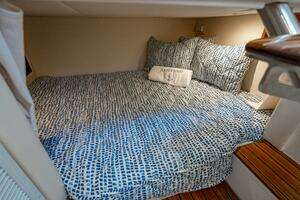

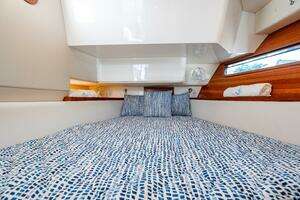

• Fixed 78”x 60” island berth. Memory foam mattress covered in durable, water resistant quilted Sunbrella
• Paneled cherry, below-berth storage drawers (4)
• Stainless double-hooks for clothing
• Osculati Sans-Souci Nauta door handles
• Osculati flush lock cabinet pulls

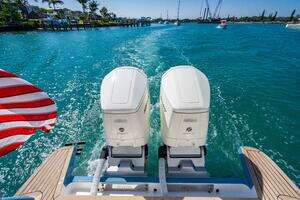

2024 Mercury Verado V12 (Engine 1)

Engine Type:

Outboard

Fuel Type:

Gas/Petrol

Engine Hours:

145

Power:

600 hp

Propeller Material:

Stainless Steel

2024 Mercury Verado V12 (Engine 2)

Engine Type:

Outboard

Fuel Type:

Gas/Petrol

Engine Hours:

145

Power:

600 hp

Propeller Material:

Stainless Steel

Dimensions

Length Overall:

46 ft 8 in

Length On Deck:

42 ft 7 in

Beam:

12 ft

Max Bridge Clearance:

9 ft 8 in

Minimum Draft:

2 ft 1 in

Max Draft:

3 ft

Deadrise At Transom:

18.5 deg

Weights

Dry Weight:

17730 lb

Speed

Hull Speed:

50 mph at rpm

Tanks

Fuel:

(475 gal)

Fresh Water:

(110 gal)

Other

Hull Warranty:

10 years

Hull Type:

Deep Vee

Flag of Registry:

United States

Designer:

MJM

Builder:

MJM

Additional Equipment

- Joystick Control
